HammerCat 45


Fast, Luxurious, Light, and Fuel Efficient.



The Design Details

2021: the year of the introduction of the HammerCat 45

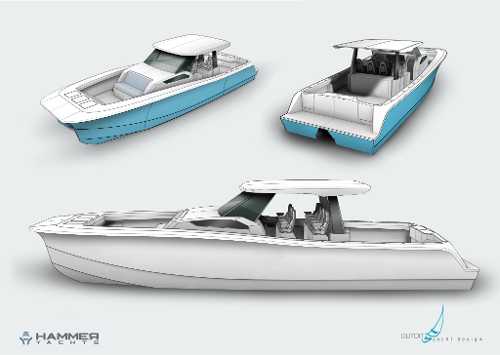

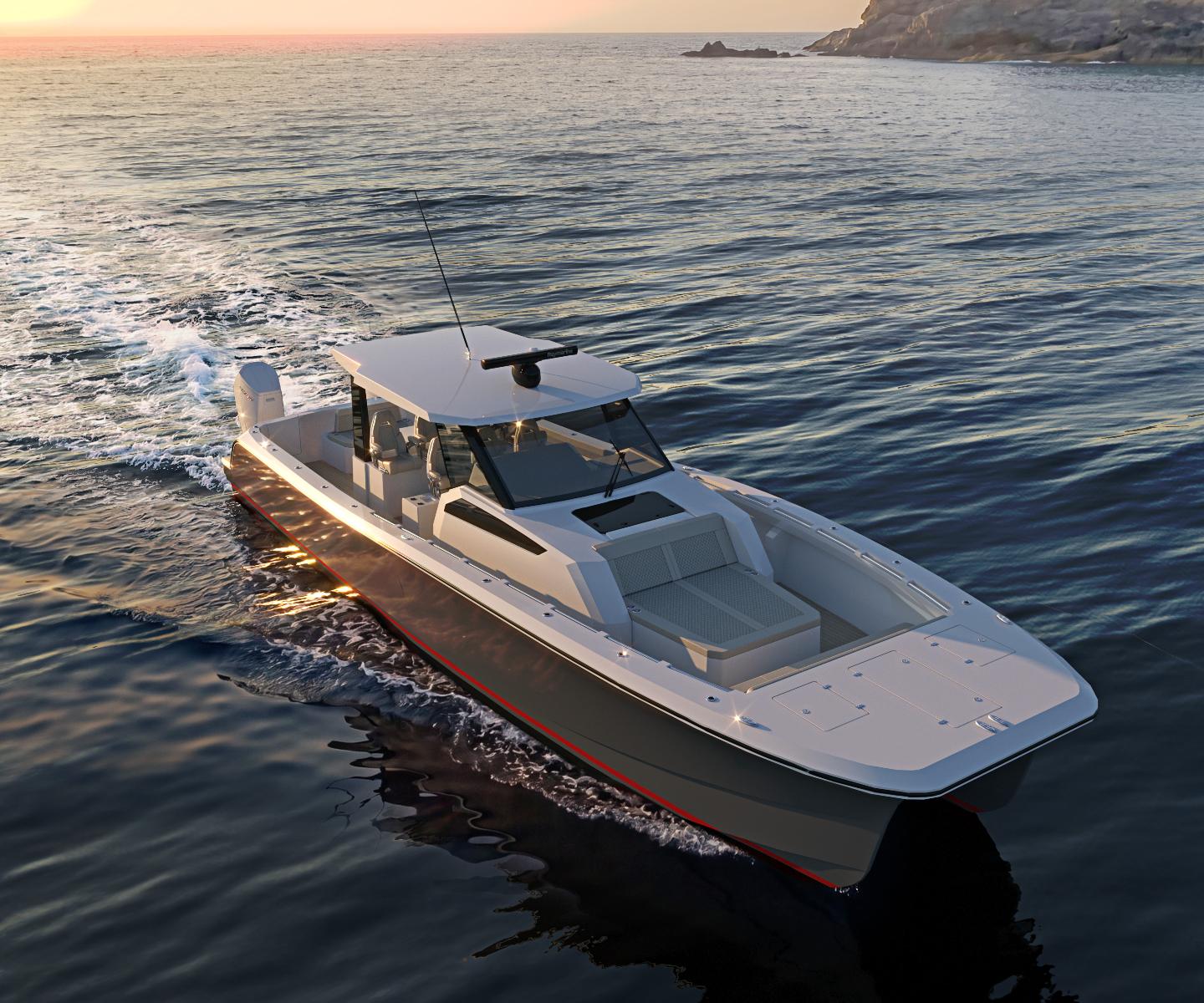

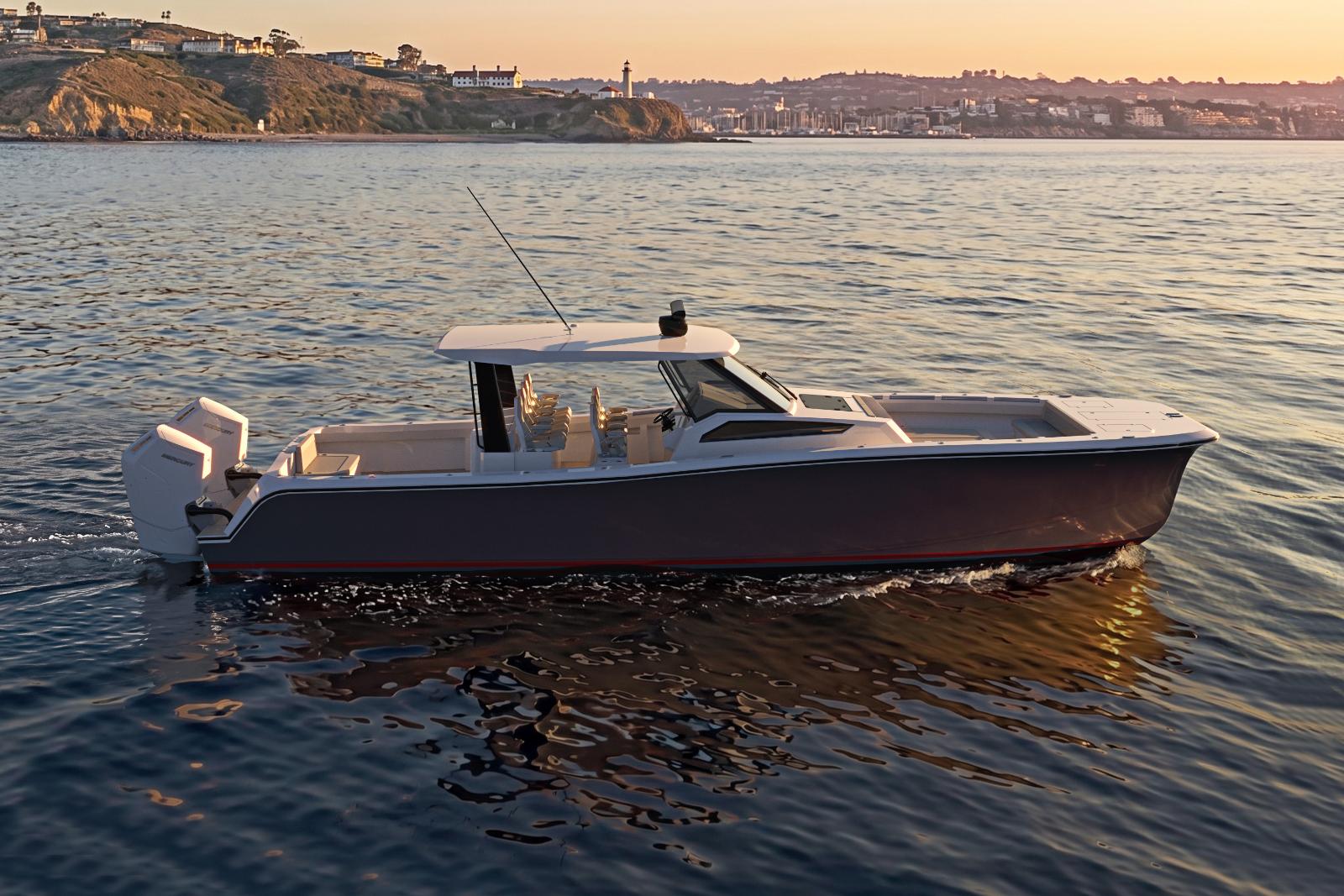

The HammerCat 45 is multi-functional power catamaran: sport fishing, diving, lounging or all of the above in one superior yacht. The sleek hull design is a good indicator of her performance. The elegant lines are an example of HammerCat heritage. The concept of the HammerCat 45 is to offer a complete package of on-water entertainment while not compromising on performance or looks.

The (optional) opening bow allows your guests to disembark on the beach or in very shallow water without getting wet. The extra-large dive door on the starboard side allows for easy access in and out of the water. The HammerCat 45 is the only power-catamaran that offers an entry / exit on all 4 corners. The large hardtop provides ample shade for all guests and the deck lay out can be suited to each individual owner’s needs

The HammerCat 45 can be built to suit your boating/ fishing / diving / super yacht tender needs.

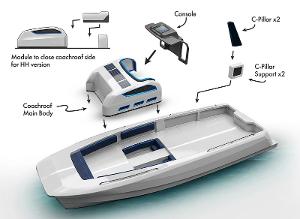

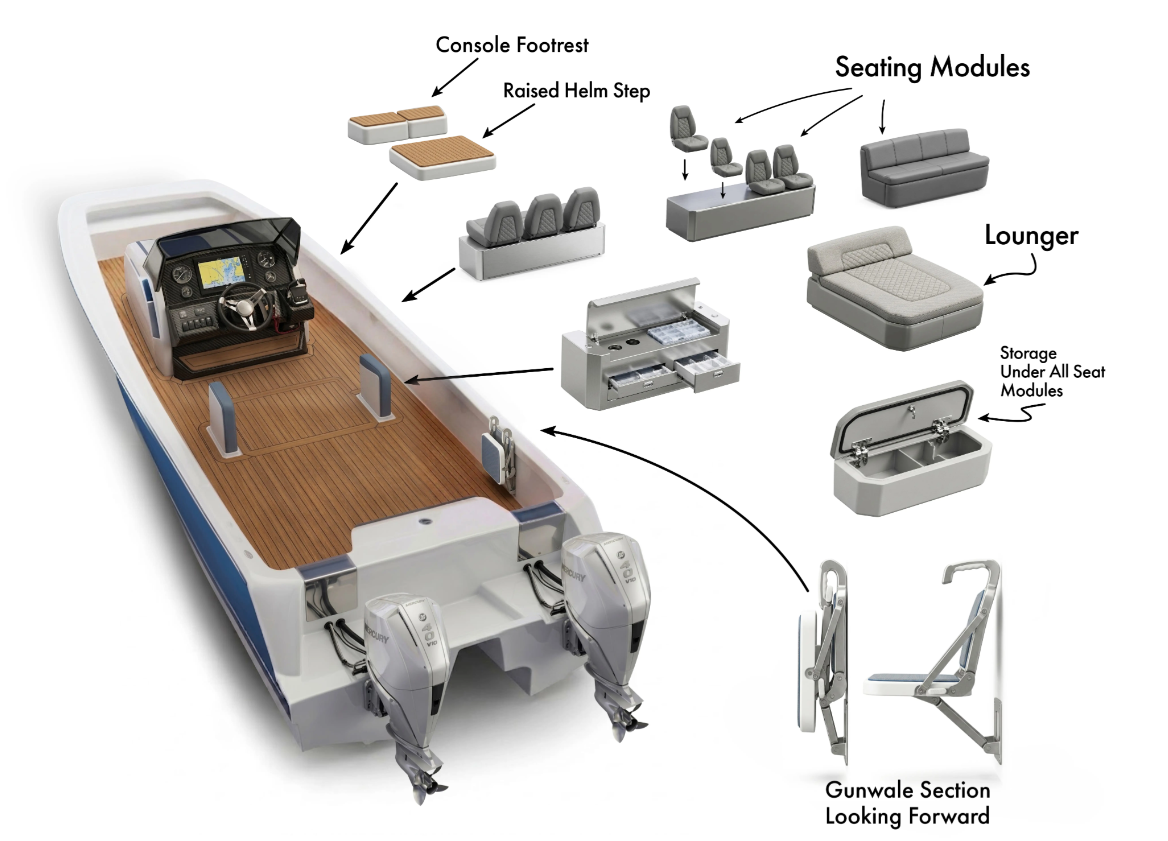

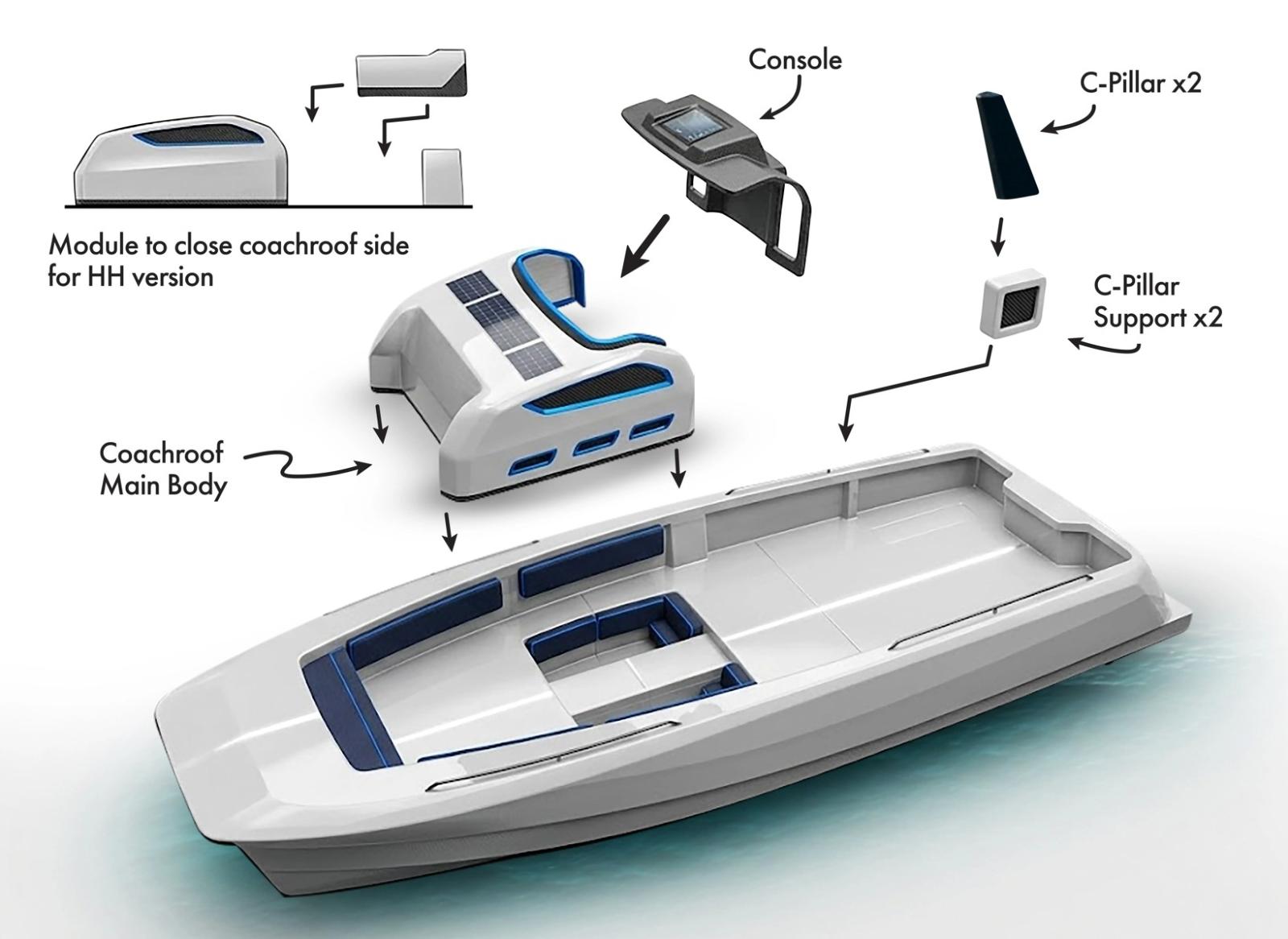

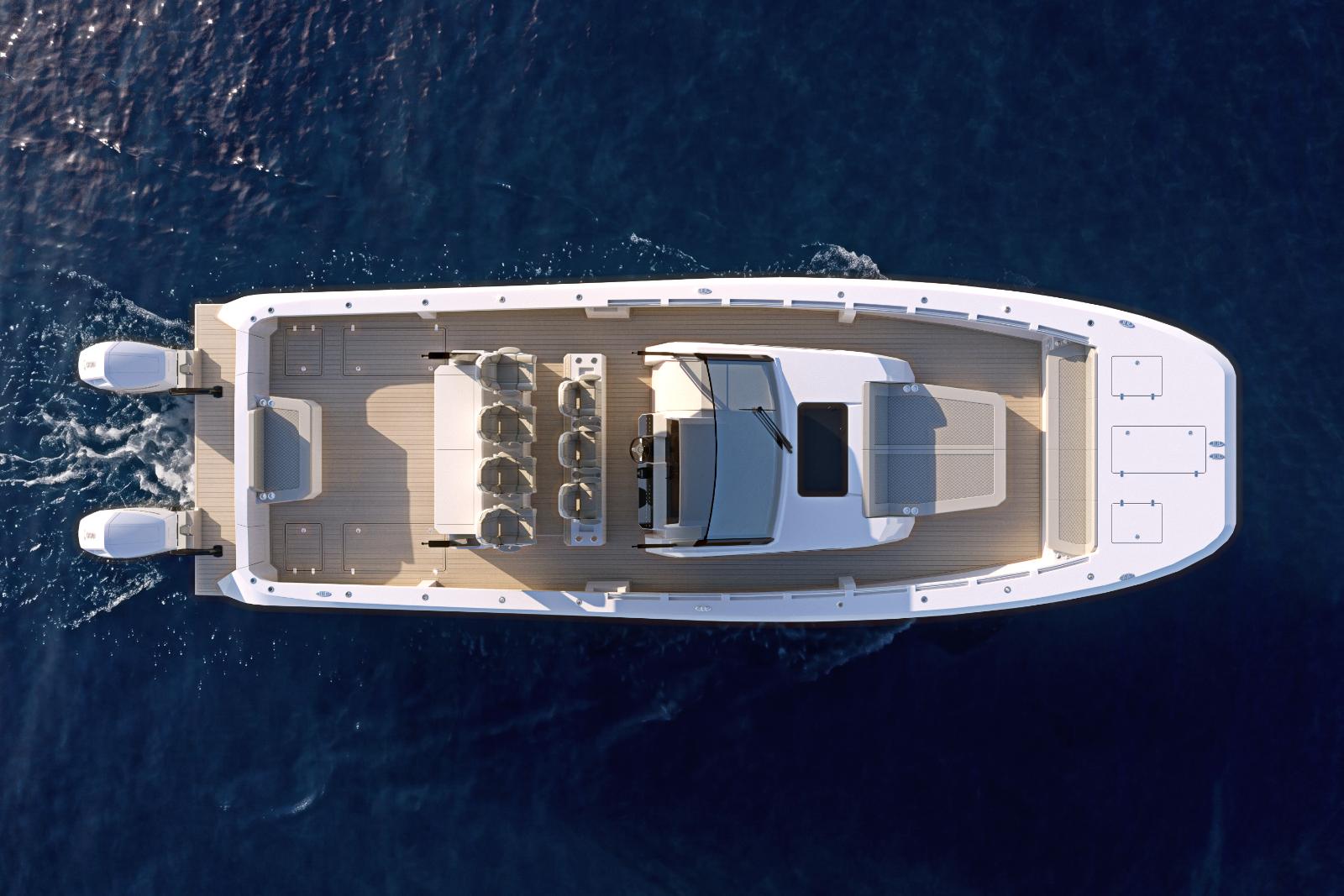

The hull measures 45’ x 14’ and we have come up with a variety of lay-outs.

Where Hammer Yachts is different from other manufacturers is that we build in epoxy composite: light weight and strong. The HammerCat 45 weight 40% less than comparable vessels which means we need half the horsepower, and are much more fuel efficient and no need to purchase and maintain 4 outboards!

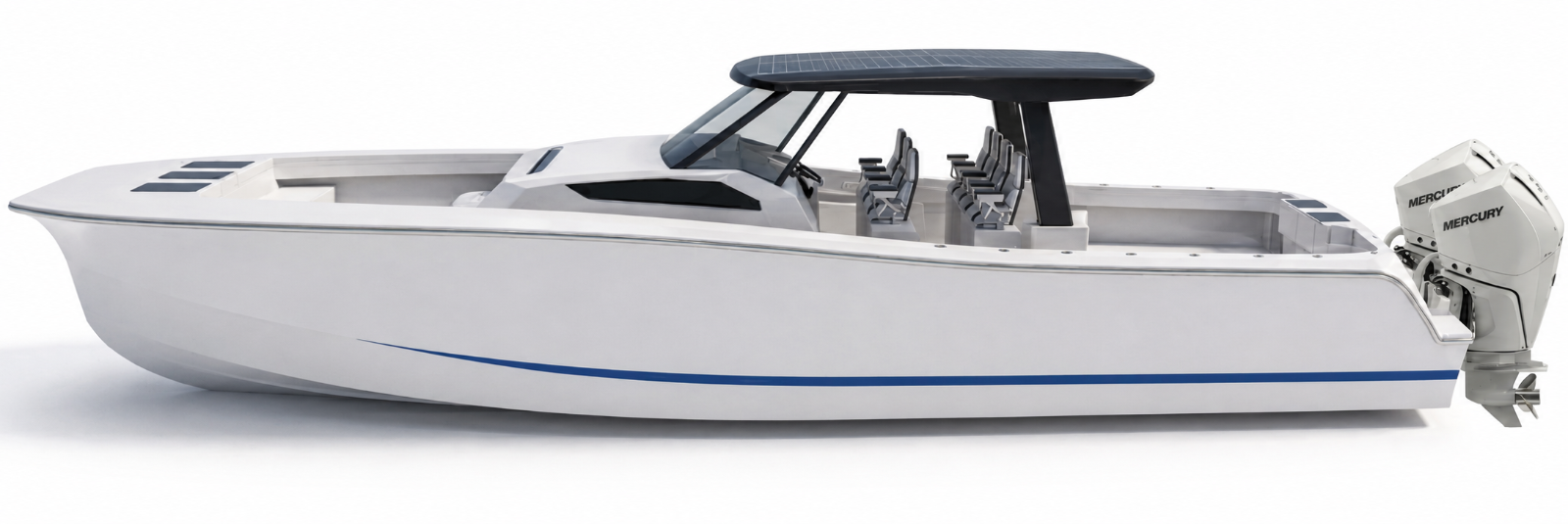

The HammerCat 45 can run 50mph with twin 400 Mercuries or twin 425 Yamahas. If speed is important, there is enough room for quad engines. Diesel outboards are also a possibility, this way you need to fuel up only once a season!

HammerCat 45 - Dimensions

Hull Length:

45’ (13.7m)

Beam: 13’ 10” (4.2m)
Dry weight: TBC
Max Engines: 4
Max Hp: 4 x 450hp (1,800hp)
Top Speed: 55+ Knots
Crusing Speed: 30-35 Knots
Construction: Optimized Carbon/E-Glass/epoxy
Art Draft: 9' 8" (3m)
Fuel Capacity: 600 gallons (2,200L)
Fresh water capacity: 50 gallons (200L)
Dash area: 60” x 20” (1500 x 500mm)
STANDARD EQUIPMENT:
  • Optimized double stepped hulls
  • Oversize carbon T-top for sun protection
  • Bow door and stairs for beach access
  • 34” wide (850mm) wide Transom door with retractable passerelle
  • Load carrying capacity for 15 people (+ gear + dive gear)
  • Sink / outdoor galley with cooler box storage
  • 4 x 260 quart (250L) below deck fish boxes
  • 4 x 200 quart (200L) below deck dry storage

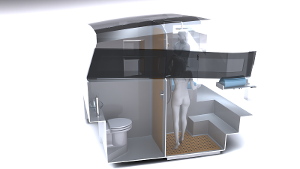

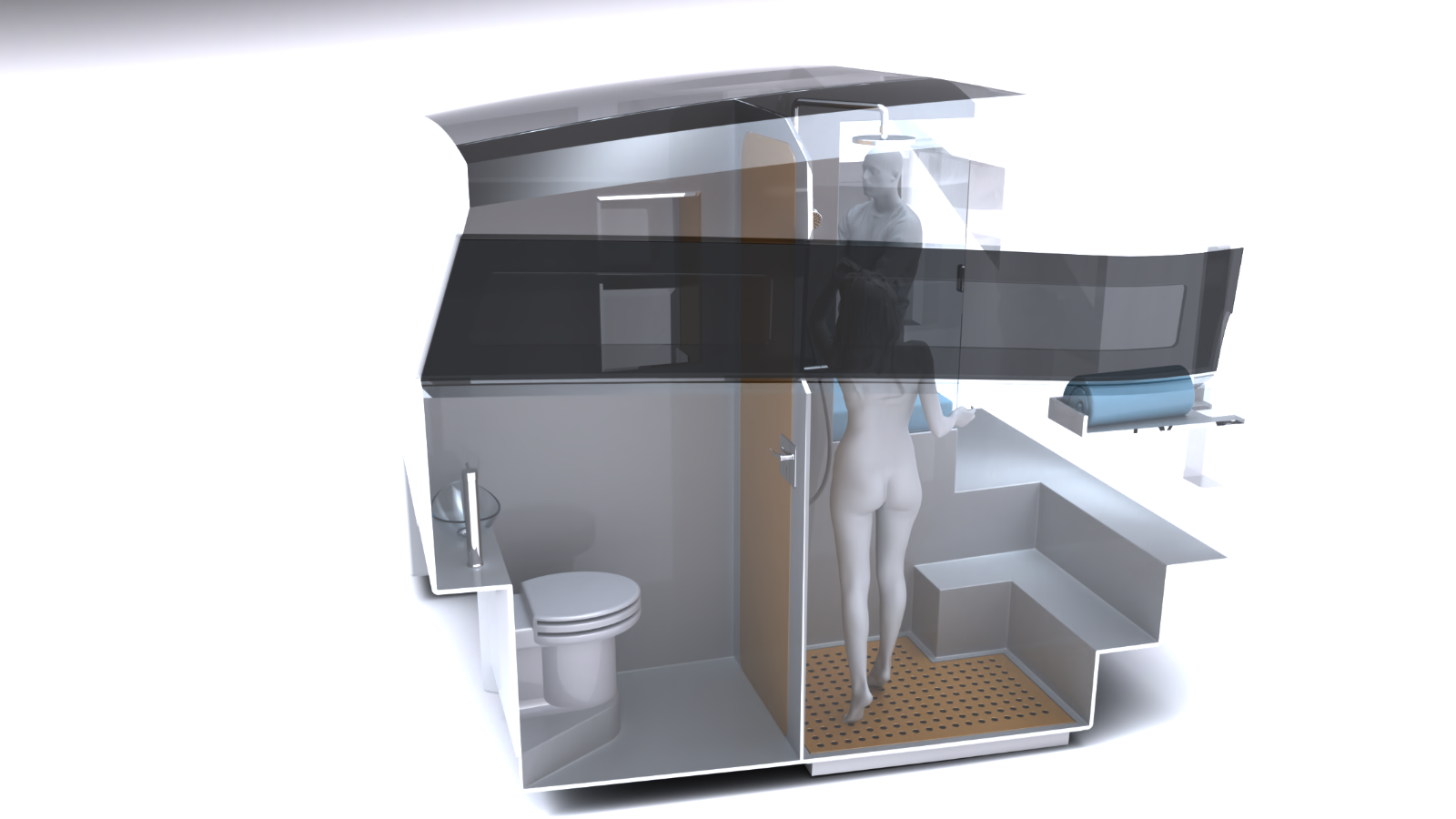

  • Heads and hand basin in console
  • Seating for 11, including individual folding armrests/cupholders
  • Bolster seating for 4, including individual folding armrests
  • Large storage trays for cellphones/loose items in dash
  • Twin 500 quart (500L) coffin box in bow.
  • Dry storage below seating units
  • 2x tow points/strong points.
  • Glass windscreen for full protection of aft seating
OPTIONAL EQUIPMENT
  • Folding aft dive platform, seating 4, with retractable dive ladder. Optional port, or starboard, or both
  • Aft fish door, with retractable dive ladder. Optional port, or starboard, or both. Forward hinge - aft opening
  • Aft live-baitwells, 2 x 160 quart (2 x 150L)
  • Aft seating for 4 on transom
  • Forward sun longer in front of console
  • Forward seating and dining table for 6
  • Aft dining arrangement for 8

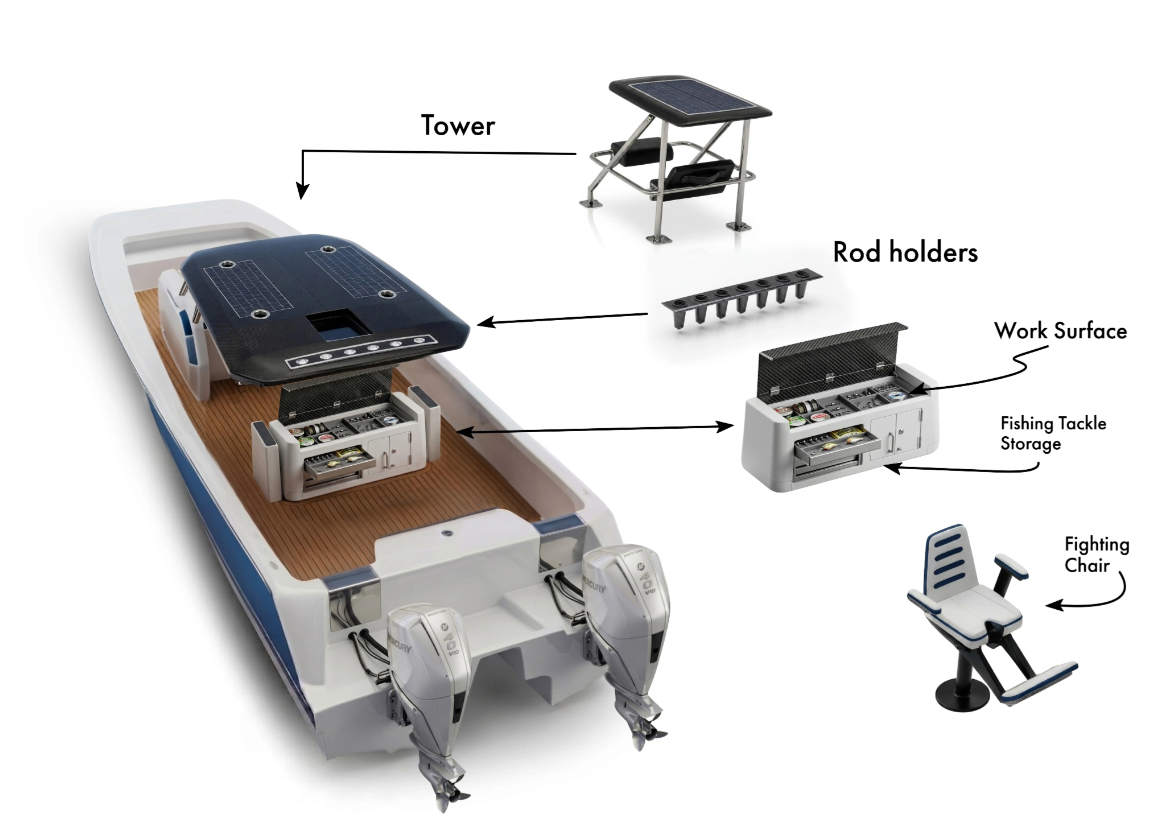

  • Aft tackle box and large fish gear storage
  • 4 x Aft sun loungers
  • Customizable rod holder locations
  • Customizable canopy / t-top mounted rod holders
  • LED down and spreader lights
  • Underwater lights
  • LED gunwale lighting and floor lighting
  • SeaDek or Esthec flooring
  • Deck shower coil
  • Transom mounted retracting hot water shower
  • Soft storage for dive gear under gunwales (masks, fins, suits, etc)
